Non-Potable Water Tanks
Code certified Bag Type Expansion Tank

JBER Series Specs Form 615
Sizes 158 - 528 gallon, 600 - 2000 liters

Bladder expansion tank for non-drinking water applications.
Top system connection.
Tanks are built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code.

Specs and Prices
Potable Water Tanks

Well Pressure Tank (specs 616)
Well Water Pressure Tank (specs 621)
Well Tank (specs 635)
Diaphragm Pressure Tank (specs 645)
Non-Potable Water Tanks
Bladder Tank (specs 615)
Bladder Expansion Tank (specs 620)
Bladder Water Tanks (specs 636)
High Temperature Bladder Tanks
Bladder Pressure Tank (specs 699A)
Diaphragm Tank (specs 699B)
Installation and Specs
Installation for Bottom Outlet Bag Tank
Technical Bulletin TB001
Technical Bulletin TB002

BLADDER TANK SPECIFICATIONS

  • Type Design and Construction: Code certified

  • Available Working Pressure: 125 PSI

  • Maximum Operating Temperature: 240º

  • Factory Precharge: 12 PSI Adjustable in Field to a Maximum of 80 PSI.
    For Higher Precharge Pressures Consult Factory.

  • Finish: Gray Primer

  • For Vertical Installation Only

  • For Coupling Added to Protect Charging Valve.

Type I - FORM 615
Bladder Tank

Home

BLADDER TANK APPLICATIONS

For Use as a Hydronic Bladder Expansion Tank
and Non-Potable Hydro-Pneumatic Applications

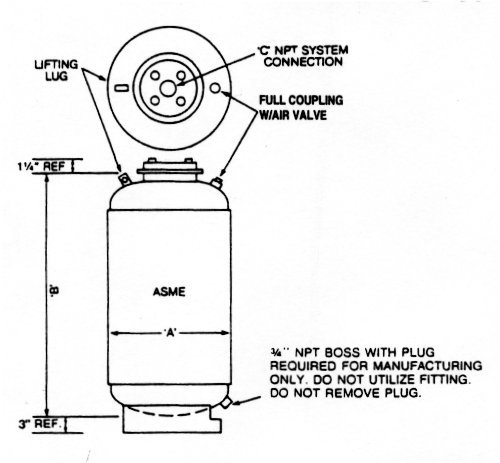

Part Number
Tank Capacity
Diameter A
Height B
NPT C
Est. Ship. Wt.
Prices
Gallon
Liters
Inches
MM
Inches
MM
Inches
MM
Lb.
Kg.
US $

JBER-25-011

158

600

30

762

58

1473

1 1/2

38

375

170

3,572.00

JBER-25-012

211

800

30

762

76

1930

1 1/2

38

447

203

4,082.00

JBER-25-013

264

1000

36

914

67

1702

2

51

551

250

4,896.00

JBER-25-014

317

1200

36

914

78 1/2

1994

2

51

615

279

5,348.00

JBER-25-015

370

1400

36

914

91

2311

2

51

694

315

5,683.00

JBER-25-016

422

1600

48

1219

63 1/2

1613

2

51

1098

498

8,230.00

JBER-25-017

528

2000

48

1219

77 1/4

1962

2

51

1239

562

8,881.00

BLADDER TANK FEATURES

  • Full Volume Flexible Elastomer Bas

  • Bag Easily Replaceable

  • Water and Air Separation Eliminates Corrosion

  • Eliminates Water Logging

  • Smaller Tank Saves Space and Installation Costs

  • Carbon Steel Construction

  • Suitable for use in Glycol Systems

BLADDER TANK OPTIONS

  • Working Pressures to a Maximum of 250 PSIG

  • Stainless Steel Wetted Parts

  • Seismic Mounting Clips

  • California Code Sight Glass

  • Special Design for Precharge Requirements Higher than 80 PSI

  • For Options Specifications and Pricing Consult Factory

  • Horizontal Design Available


Maximum acceptance for full volume Bag Tanks is approximately 90% of stated tank capacity.

Typical acceptance capabilities based upon standard system operating conditions of 12 PSI maximum.
Refer to Technincal Bulletin 001 to determine acceptance capabilities for different system operating conditions.

All sizes normally is stock for prompt shipment.
For smaller sizes refer to JAER Series - Form Number 620
For Potable Applications see JBPR Series - Form Number 616
All Specifications Subject to Change Without Notice.
