Non-Potable Water Tanks
Code certified Bottom Outlet
Bladder Expansion Tank

JOER Series Specs Form 636
Sizes 120 - 3000 gallon, 450 - 11364 liters

Bladder expansion tank for non-drinking water applications.
Bottom system connection.
Tanks are built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code.

Specs and Prices
Potable Water Tanks
Well Pressure Tank (specs 616)
Well Water Pressure Tank (specs 621)
Well Tank (specs 635)
Diaphragm Pressure Tank (specs 645)
Non-Potable Water Tanks
Bladder Tank (specs 615)
Bladder Expansion Tank (specs 620)
Bladder Water Tanks (specs 636)
High Temperature Bladder Tanks
Bladder Pressure Tank (specs 699A)
Diaphragm Tank (specs 699B)
Installation and Specs
Installation for Bottom Outlet Bag Tank
Technical Bulletin TB001
Technical Bulletin TB002

BLADDER WATER TANKS SPECIFICATIONS

  • Type Design and Construction: Code certified

  • Available Working Pressure: 125/200/250 PSI

  • Maximum Operating Temperature: 240ºF

  • Factory Precharge: 12 PSI - Adjustable in the Field to a maximum of 80 PSI. For Higher Precharge Pressures Consult Factory.

  • Finish: Gray Primer

  • For Vertical Installation Only

  • Full Coupling Added to Protect Charging Valve

 Type I - FORM 636



Bladder Water Tanks
Home

BLADDER WATER TANKS APPLICATIONS

  • For Use as Expansion Tank & Non-Potable Hydro-Pneumatic Applications

BLADDER WATER TANKS OPTIONS

  • Stainless Steel Wetted Parts

  • Brass System Connection

  • California Code Sight Glass

  • Special Exterior Finish

  • Other Bladder Materials Available

  • Larger Sizes Available

  • Horizontal Design Available

BLADDER WATER TANKS FEATURES

  • Full Volume Flexible Elastomer Bag

  • Bag Easily Replaceable

  • Water and Air Separation Eliminates Corrosion

  • Eliminates Water Logging

  • Carbon Steel Construction
For Potable Applications see JOPR Series - Form Number 635.
All Specifications Subject to Change Without Notice.
Part Number
Max.
Working Press.
Tank Capacity

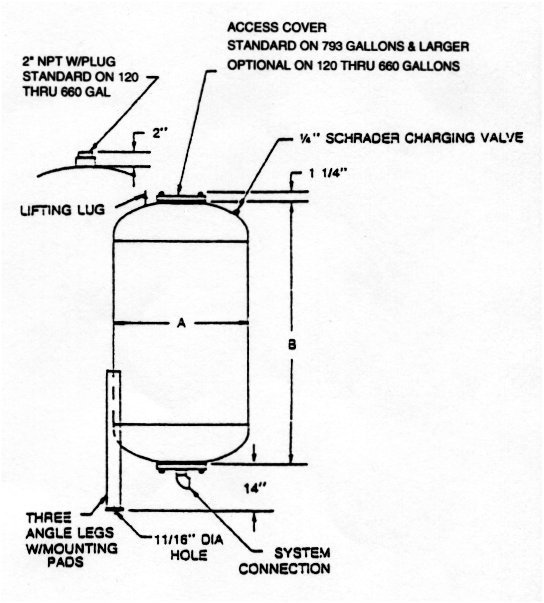

Diameter A
Height B
System Connection
Est. Ship. Wt.
Prices
Gall.
Liters
Inches
MM
Inches
MM
Inches
MM
Lb.
Kg.
US $

JOER-22-009

125

120

450

24

610

67 7/8

1,724

1 1/2

38

245

111

3,436.00

JOER-22-011

125

158

600

30

762

58

1,473

1 1/2

38

375

170

4,066.00

JOER-22-012

125

211

800

30

762

76

1,930

1 1/2

38

447

203

4,866.00

JOER-22-013

125

264

1000

36

914

67

1,702

2

51

551

250

5,655.00

JOER-22-014

125

317

1,200

36

914

78 1/2

1,994

2

51

615

279

6,036.00

JOER-22-015

125

370

1,400

36

914

91

2,311

2

51

694

315

6,544.00

JOER-22-016

125

422

1,600

48

1,219

63 1/2

1,613

2

51

1,008

457

9,213.00

JOER-22-017

125

528

2,000

48

1,219

77 1/4

1,962

2

51

1,239

562

9,656.00

JOER-22-018

125

660

2,500

48

1,219

94

2,388

2

51

2,000

907

10,429.00

JOER-22-019

125

793

3,000

48

1,219

122

3,099

2

51

2,235

1,014

11,103.00

JOER-22-020

125

1,056

4,000

54

1,372

132

3,353

2 1/2

64

3,200

1,452

16,085.00

JOER-22-021

125

1,320

5,000

54

1,372

151

3,835

2 1/2

64

3,650

1,656

17,481.00

JOER-22-022

125

1,600

6,060

72

1,829

107

2,718

2 1/2

64

6,173

2,800

21,788.00

JOER-22-023

125

2,000

7,575

72

1,829

130

3,302

2 1/2

64

9,336

4,235

26,190.00

JOER-22-024

125

2,640

10,000

72

1,829

164

4,166

3

76

10,582

4,800

28,850.00

JOER-22-028

125

2,800

10,606

72

1,829

174

4,420

3

76

10,803

4,900

P.O.A.

JOER-22-030

125

3,000

11,364

72

1,829

186

4,724

3

76

11,023

5,000

P.O.A.

JOER-22-039

125

3,963

-

-

-

-

-

-

-

-

-

P.O.A.
PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
PRICES LISTED ABOVE ARE SUBJECT TO ADDITION OF ANY TAX IMPOSED BY ANY PRESENT FEDERAL, STATE, COUNTY OR MUNICIPAL LAW.
PRICES SHOWN DO NOT CONSTITUTE A CONTRACT TO DELIVER AT THESE PRICES.
ERRORS AND OMMISSIONS EXCEPTED.
