Code certified Hydropneumatic Bag Tank
Well Water Pressure Tank

JAPR Series Specs Form 621
Sizes 10 - 135 gallon, 38 - 513 liters

Well pressure tank application for drinking water.
Top system connection.
Tanks are built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code.

Specs and Prices
Potable Water Tanks
Well Pressure Tank (specs 616)
Well Water Pressure Tank (specs 621)
Well Tank (specs 635)
Diaphragm Pressure Tank (specs 645)
Non-Potable Water Tanks
Bladder Tank (specs 615)
Bladder Expansion Tank (specs 620)
Bladder Water Tanks (specs 636)
High Temperature Bladder Tanks
Bladder Pressure Tank (specs 699A)
Diaphragm Tank (specs 699B)
Installation and Specs
Installation for Bottom Outlet Bag Tank
Technical Bulletin TB001
Technical Bulletin TB002

WELL WATER PRESSURE TANK SPECIFICATIONS

  • Type Design and Construction: Code certified

  • Available Working Pressure: 150/125 PSI

  • Maximum Operating Temperature: 140ºF

  • Factory Precharge: 12 PSI - Adjustable in the Field to a maximum of 40 PSI.
    Special Internal pipe required for precharge higher than 80 PSI - consult factory.

  • Finish: Gray Primer

  • For Vertical and Horizontal Installation

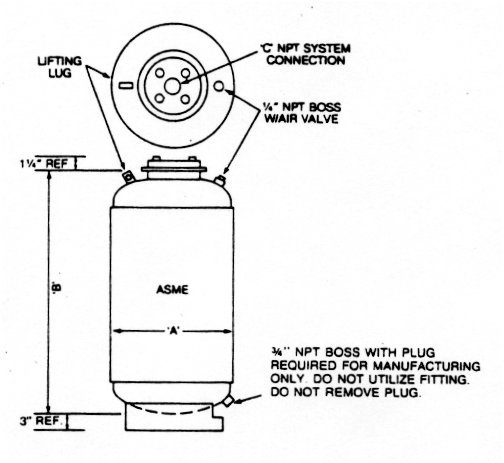

 Type I - FORM 621 Well Water Pressure Tank
Home
Part Number
Tank Capacity
Diameter A
Height B
NPT C
Est. Ship. Wt.
Maximum
Working Pressure
Prices
Gallon
Liters
Inches
Inches
Inches
Lb.
PSI
US $

JAPR-20-601

10

38

12

22 1/4

1

45

150

864.00

JAPR-20-602

15

57

12

32 3/4

1

58

150

1,016.00

JAPR-20-603

24

91

12

50 1/4

1

75

150

1,246.00

JAPR-20-604

30

114

14

47 7/8

1

91

150

1,430.00

JAPR-20-605

35

132

14

55 3/8

1

104

150

1,563.00

JAPR-20-606

40

151

14

62 7/8

1

116

150

1,757.00

JAPR-20-607

60

227











1,837.00

JAPR-20-608

80

303

20

62 1/4

1 1/2

168

125

2,285.00

JAPR-20-668

105

399

24

56

1 1/2

209

125

2,464.00

JAPR-20-609

120

454

24

64 7/8

1 1/2

226

125

2,517.00

JAPR-20-610

135

511

24

72

1 1/2

255

125

2,694.00

WELL WATER PRESSURE TANK APPLICATIONS

WELL WATER PRESSURE TANK OPTIONS

  • Higher Working Pressure

  • Stainless Steel Wetted Parts

  • Anchor Mounting Clips (and Seismic Calculations)

  • For Options Custom Specifications Please Consult Factory

WELL WATER PRESSURE TANK FEATURES

  • Full Volume Flexible Elastomer Bag

  • Bag Easily Replaceable

  • Water and Air Separation Eliminates Corrosion

  • Eliminates Water Logging

  • Smaller Tank Saves Space and Installation Costs

  • Carbon Steel Construction
Refer to Technical Bulletin 002 to determine drawdown capacities for different system operating conditions.
All sizes normally in stock for prompt shipment.
For larger stock sizes refer to JBPR Series - Specification Sheet 616.
