Non-Potable Water Tanks
Code certified Bladder Expansion Tank

JAER Series Specs Form 620
Sizes 10 - 135 gallon, 38 - 513 liters

Bladder expansion tank for non-drinking water applications.
Top system connection.
Tanks are built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code.

Specs and Prices
Potable Water Tanks
Well Pressure Tank (specs 616)
Well Water Pressure Tank (specs 621)
Well Tank (specs 635)
Diaphragm Pressure Tank (specs 645)
Non-Potable Water Tanks
Bladder Tank (specs 615)
Bladder Expansion Tank (specs 620)
Bladder Water Tanks (specs 636)
High Temperature Bladder Tanks
Bladder Pressure Tank (specs 699A)
Diaphragm Tank (specs 699B)
Installation and Specs
Installation for Bottom Outlet Bag Tank
Technical Bulletin TB001
Technical Bulletin TB002

Code certified BLADDER EXPANSION TANK SPECIFICATIONS

  • Type Design and Construction: Code certified

  • Available Working Pressure: 150/125 PSI

  • Maximum Operating Temperature: 240ºF

  • Factory Precharge: 12 PSI - Adjustable in Field
    Special Internal pipe required for precharge higher than 80 PSI - consult factory.

  • Finish: Gray Primer

  • For Vertical and Horizontal Installation Only

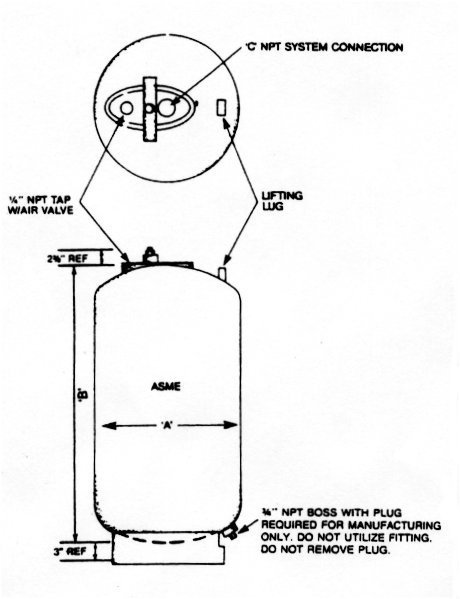

 Type I - FORM 620 Bladder Expansion Tank
Home
Part Number
Tank Capacity
Diameter A
Height B
NPT C
Est. Ship. Wt.
Maximum
Working Pressure
Prices
Gallon
Liters
Inches
Inches
Inches
Lb.
PSI
US $

JAER-23-601

10

38

12

22 1/4

1

45

150

952.00

JAER-23-602

15

57

12

32 3/4

1

58

150

1141.00

JAER-23-603

24

91

12

50 1/4

1

75

150

1339.00

JAER-23-604

30

114

14

47 7/8

1

91

150

1,596.00

JAER-23-605

35

133

14

55 3/8

1

104

150

1,628.00

JAER-23-606

40

152

14

62 7/8

1

116

150

1,840.00

JAER-23-607

60

228

16

72

1 1/2

141

150

2,023.00

JAER-23-608

80

304

20

62 1/4

1 1/2

168

125

2,378.00

JAER-23-668

105

339

24

56

1 1/2

209

125

2,660.00

JAER-23-609

120

456

24

64 7/8

1 1/2

226

125

2,717.00

JAER-23-610

135

513

24

72

1 1/2

255

125

2,895.00

BLADDER EXPANSION TANK APPLICATIONS

BLADDER EXPANSION TANK OPTIONS

  • Higher Working Pressure

  • Stainless Steel Wetted Parts

  • Anchor Mounting Clips (and Seismic Calculations)

  • For Options and Custom Specifications Please Consult Factory

BLADDER EXPANSION TANK FEATURES

  • Full Volume Flexible Elastomer Bladder

  • Bag Easily Field Replaceable

  • Water and Air Separation Eliminates Corrosion

  • Water Logging Eliminated

  • Smaller Tank Saves Space and Installation Costs

  • Carbon Steel Construction

  • Suitable for use in Glycol Systems
Maximum acceptance for full volume Bag Tanks is approximately 90% of stated tank capacity.
Typical acceptance capabilities based upon system operating conditions.
Refer to Technincal Bulletin TB001 to determine acceptance capabilities for different operating conditions.
All sizes normally is stock for prompt shipment.
For larger sizes refer to JBER Series - Specification Form 615
PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
PRICES LISTED ABOVE ARE SUBJECT TO ADDITION OF ANY TAX IMPOSED BY ANY PRESENT FEDERAL, STATE, COUNTY OR MUNICIPAL LAW.
PRICES SHOWN DO NOT CONSTITUTE A CONTRACT TO DELIVER AT THESE PRICES.
ERRORS AND OMMISSIONS EXCEPTED.
