Potable Water Tanks
Code certified Bottom Outlet
Hydropneumatic Well Tank

JOPR Series Specs Form 635
Sizes 120 - 1320 gallon, 456 - 5016 liters

Well tank application for drinking water.
Bottom system connection.
Tanks are built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code.

Specs and Prices
Potable Water Tanks
Well Pressure Tank (specs 616)
Well Water Pressure Tank (specs 621)
Well Tank (specs 635)
Diaphragm Pressure Tank (specs 645)
Non-Potable Water Tanks
Bladder Tank (specs 615)
Bladder Expansion Tank (specs 620)
Bladder Water Tanks (specs 636)
High Temperature Bladder Tanks
Bladder Pressure Tank (specs 699A)
Diaphragm Tank (specs 699B)
Installation and Specs
Installation for Bottom Outlet Bag Tank
Technical Bulletin TB001
Technical Bulletin TB002

WELL TANK SPECIFICATIONS

  • Type Design and Construction: Code certified

  • Available Working Pressure: 125 PSI/200/250

  • Maximum Operating Temperature: 140ºF

  • Factory Precharge: 12 PSI - Adjustable in the Field to a maximum of 80 PSI.
    For higher precharge pressure - consult factory.

  • Finish: Gray Primer

  • For Vertical Installation Only

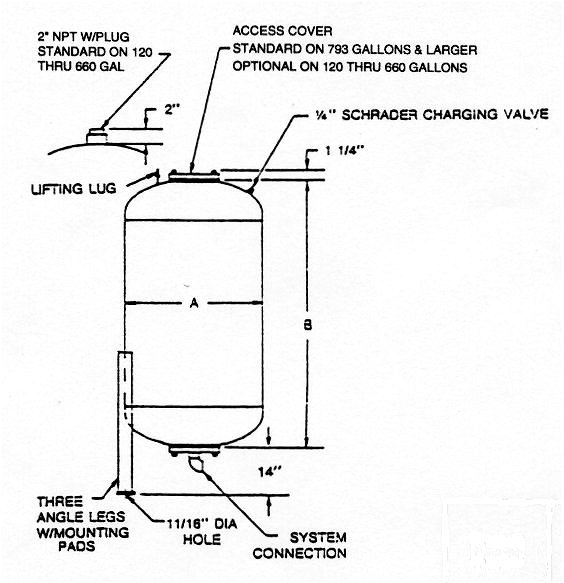

 Type I - FORM 635
Well Tank
Product Number
WP
Capacity
Size
System
Connection C
Weight
Prices
Gall.
Liter
Inches
mm
Inches
mm
Lbs.
Kg.
US $

JOPR-22-009

125

120

456

24 x 67 7/8

608 x 1721

1 1/2

38

245

111

3,966.00

JOPR-22-011

125

158

600

30 x 58

760 x 1467

1 1/2

38

375

170

4,167.00

JOPR-22-012

125

211

800

30 x 76

760 x 1923

1 1/2

38

447

203

4,399.00

JOPR-22-013

125

264

1000

36 x 67

915 x 1695

2

50

551

250

5,719.00

JOPR-22-014

125

317

1200

36 x 78 1/2

915 x 1986

2

50

615

280

6,098.00

JOPR-22-015

125

370

1400

36 x 91

915 x 2302

2

50

694

315

6,607.00

JOPR-22-016

125

422

1600

48 x 63 1/2

1220 x 1607

2

50

1098

499

9,276.00

JOPR-22-017

125

528

2000

48 x 77 1/4

1220 x 1967

2

50

1239

563

9,721.00

JOPR-22-018

125

660

2508

48 x 94

1220 x 2397

2

50

1500

682

P.O.A.

JOPR-22-019

125

793

3013

48 x 122

1220 x 3110

2

50

1625

739

P.O.A.

JOPR-22-020

125

1056

4013

54 x 132

1368 x 3365

2 1/2

63

2300

1045

P.O.A.

JOPR-22-021

125

1320

5016

54 x 151

1368 x 3849

2 1/2

63

2570

1168

P.O.A.

WELL TANK APPLICATIONS

  • For Use as in hydropneumatic applications like well tank

  • FDA approved potable material

  • For sizing tank - please refer to Technical Bulletin 002

WELL TANK OPTIONS

  • Stainless Steel Wetted Parts

  • Brass System Connection

  • California Code Sight Glass

  • Special Exterior Finish

  • Other Bladder Materials Available

  • Larger Sizes Available - Up To 3,000 Gallons

  • Horizontal Design Available

WELL TANK FEATURES

  • Full Volume Flexible Elastomer Bag

  • Bag Easily Replaceable

  • Water and Air Separation Eliminates Corrosion

  • Eliminates Water Logging

  • Carbon Steel Construction
PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
PRICES LISTED ABOVE ARE SUBJECT TO ADDITION OF ANY TAX IMPOSED BY ANY PRESENT FEDERAL, STATE, COUNTY OR MUNICIPAL LAW.
PRICES SHOWN DO NOT CONSTITUTE A CONTRACT TO DELIVER AT THESE PRICES.
ERRORS AND OMMISSIONS EXCEPTED.
