Potable Water Tanks
Hydropneumatic Booster Tank
Diaphragm Pressure Tank

JOPR Series Specs Form 645
Sizes 80 - 3963 gallon

Hydro-pneumatic pressure tanks for drinking water systems.
Tanks are built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code.

Specs and Prices
Potable Water Tanks

Well Pressure Tank (specs 616)
Well Water Pressure Tank (specs 621)
Well Tank (specs 635)
Diaphragm Pressure Tank (specs 645)
Non-Potable Water Tanks
Bladder Tank (specs 615)
Bladder Expansion Tank (specs 620)
Bladder Water Tanks (specs 636)
High Temperature Bladder Tanks
Bladder Pressure Tank (specs 699A)
Diaphragm Tank (specs 699B)
Installation and Specs
Installation for Bottom Outlet Bag Tank
Technical Bulletin TB001
Technical Bulletin TB002

DIAPHRAGM PRESSURE TANK DESCRIPTION

  • Code certified Pre-Charged Hydro-Pneumatic
    Tank for Commercial and Industrial Well Water
    Systems, Booster Systems, or other
    Domestic Potable Cold Water Applications.

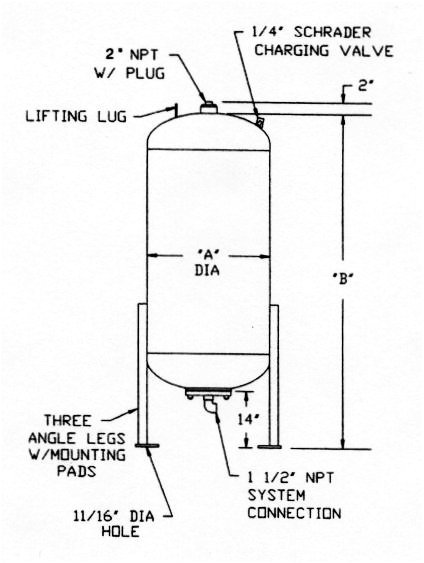

Vertical - FORM 645

Diaphragm Pressure Tank

Home

DIAPHRAGM PRESSURE TANK CONSTRUCTION

  • Maximum Design Pressure: 125 PSI (862 kPa)

  • Maximum Design Temperature: 240ºF (115ºC)

  • Shell: Carbon Steel

  • Bladder: FDA Approved Elastomer
    (for potable applications)

DIAPHRAGM PRESSURE TANK OPTIONS

  • Special Finishes Available

  • Higher Working Pressures

  • Stainless Steel Wetted Parts


Model Number
Capacity
A
Dimension
B
Overheads
C
System
Connection
Estimated
Shipping
Weight Lbs.
Prices


Gallons
Inches
Inches
Inches
Lbs.
US $

JOPR-22-080

80

20

62 7/8

2

230

3,234.00

JOPR-22-105

105

24

56

2

305

Call for price!

JOPR-22-009

120

24

66

2

335

Call for price!

JOPR-22-011

158

30

58

2

435

Call for price!

JOPR-22-012

211

30

76

2

515

Call for price!

JOPR-22-013

264

36

67

2

600

Call for price!

JOPR-22-014

317

36

78 1/2

2

675

Call for price!

JOPR-22-015

370

36

91

2

760

Call for price!

JOPR-22-016

422

48

63 1/2

2

1075

Call for price!

JOPR-22-017

528

48

77 3/8

2

561

Call for price!

JOPR-22-018

660

48

94

2

356

Call for price!

JOPR-22-019

793

48

122 7/8

2

1900

Call for price!

JOPR-22-020

1056

54

132

2 1/2

2350

Call for price!

JOPR-22-021

1320

54

151

2 1/2

2525

Call for price!

JOPR-22-022

1600

72

107

3

3425

Call for price!

JOPR-22-023

2000

72

130

3

4145

Call for price!

JOPR-22-024

2640

72

164

3

4900

Call for price!

JOPR-22-028

2800

72

174

3

5225

Call for price!

JOPR-22-030

3000

72

186

3

5550

Call for price!

JOPR-22-039

3963

72

232 3/4

3

6635

Call for price!

PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
PRICES LISTED ABOVE ARE SUBJECT TO ADDITION OF ANY TAX IMPOSED BY ANY PRESENT FEDERAL, STATE, COUNTY OR MUNICIPAL LAW.
PRICES SHOWN DO NOT CONSTITUTE A CONTRACT TO DELIVER AT THESE PRICES.
ERRORS AND OMMISSIONS EXCEPTED.
