Technical Bulletin 001

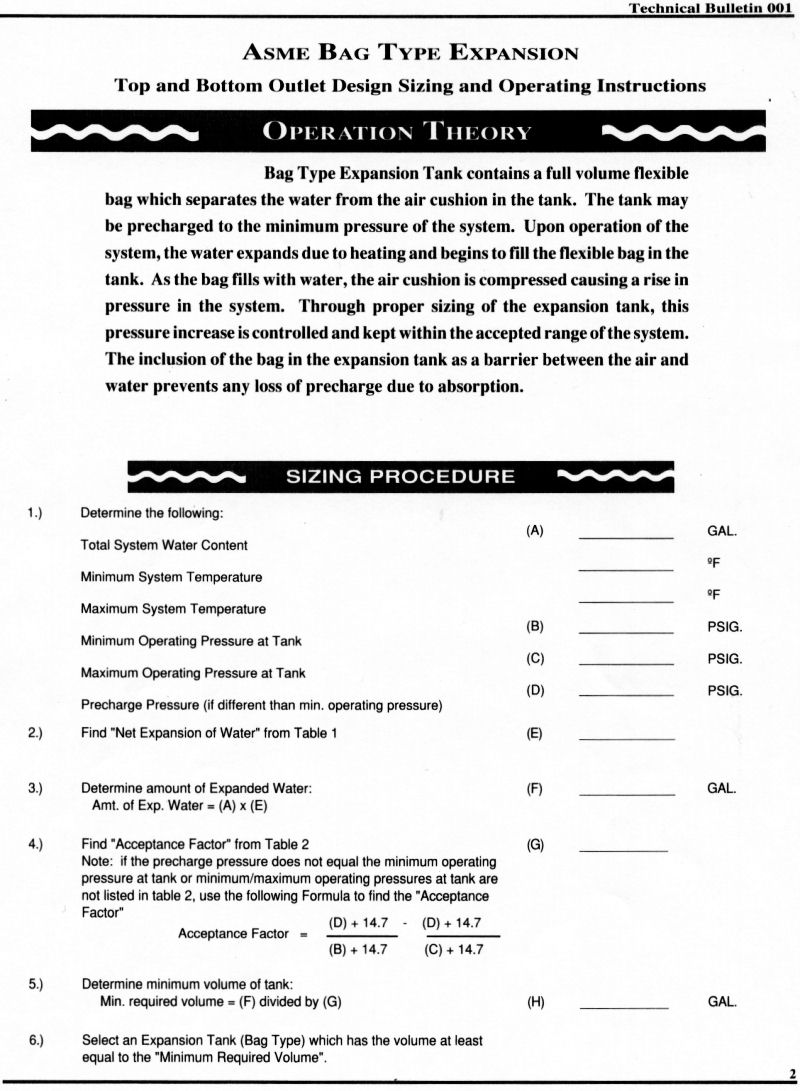

Code certified Bag Type Expansion Tank
Top and Bottom Outlet Design
Sizing and Operating Instruction

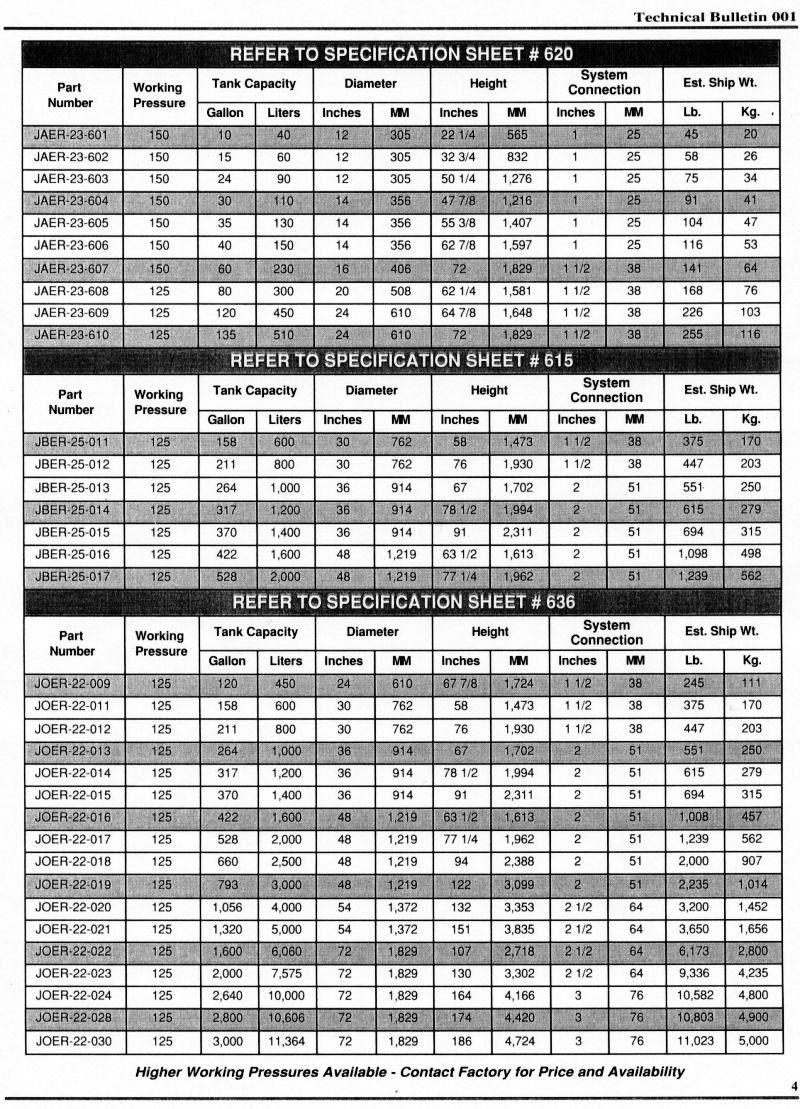

Specs and Prices
Potable Water Tanks

Well Pressure Tank (specs 616)
Well Water Pressure Tank (specs 621)
Well Tank (specs 635)
Diaphragm Pressure Tank (specs 645)
Non-Potable Water Tanks
Bladder Tank (specs 615)
Bladder Expansion Tank (specs 620)
Bladder Water Tanks (specs 636)
High Temperature Bladder Tanks
Bladder Pressure Tank (specs 699A)
Diaphragm Tank (specs 699B)
Installation and Specs
Installation for Bottom Outlet Bag Tank

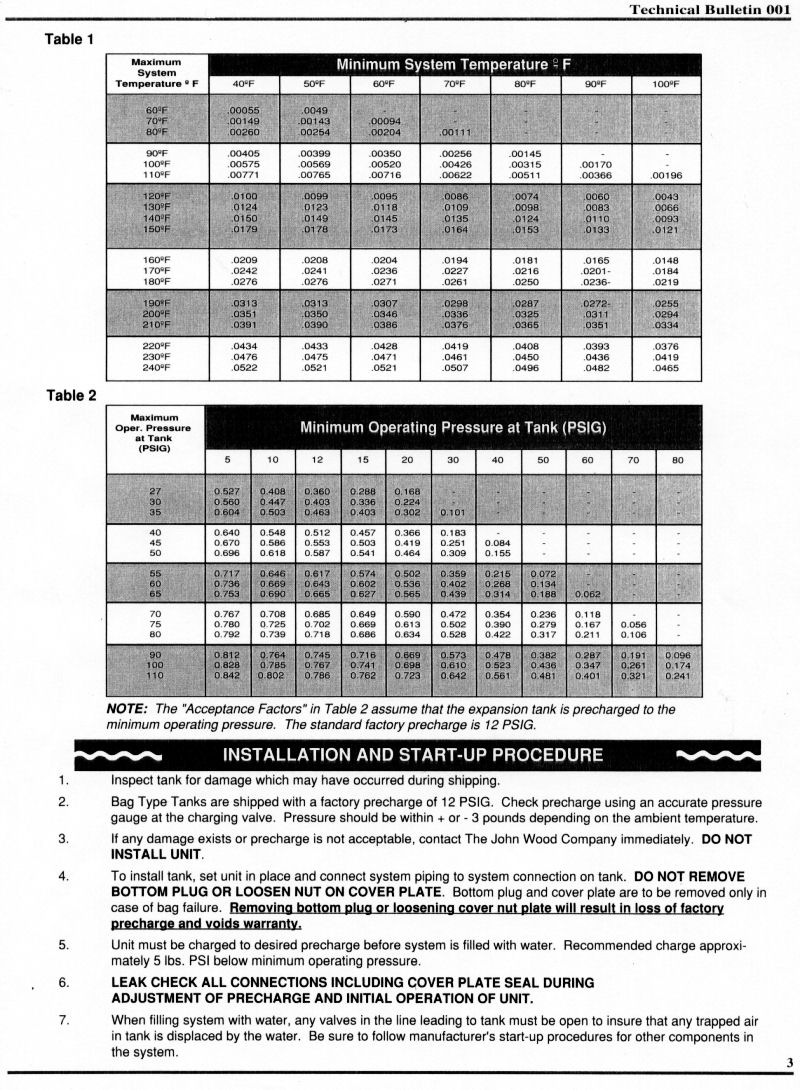

Technical Bulletin TB001
Technical Bulletin TB002

Click on the icon to view and print large picture!


PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
PRICES LISTED ABOVE ARE SUBJECT TO ADDITION OF ANY TAX IMPOSED BY ANY PRESENT FEDERAL, STATE, COUNTY OR MUNICIPAL LAW.
PRICES SHOWN DO NOT CONSTITUTE A CONTRACT TO DELIVER AT THESE PRICES.
